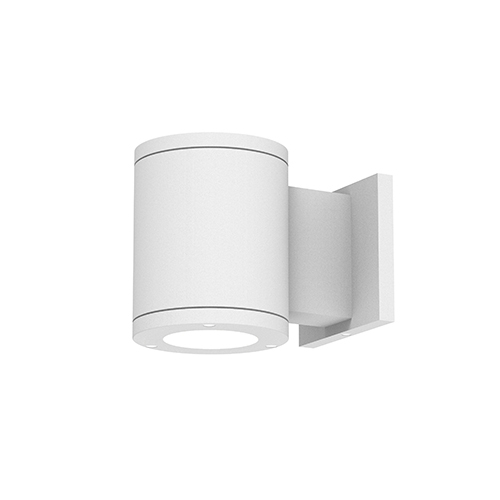

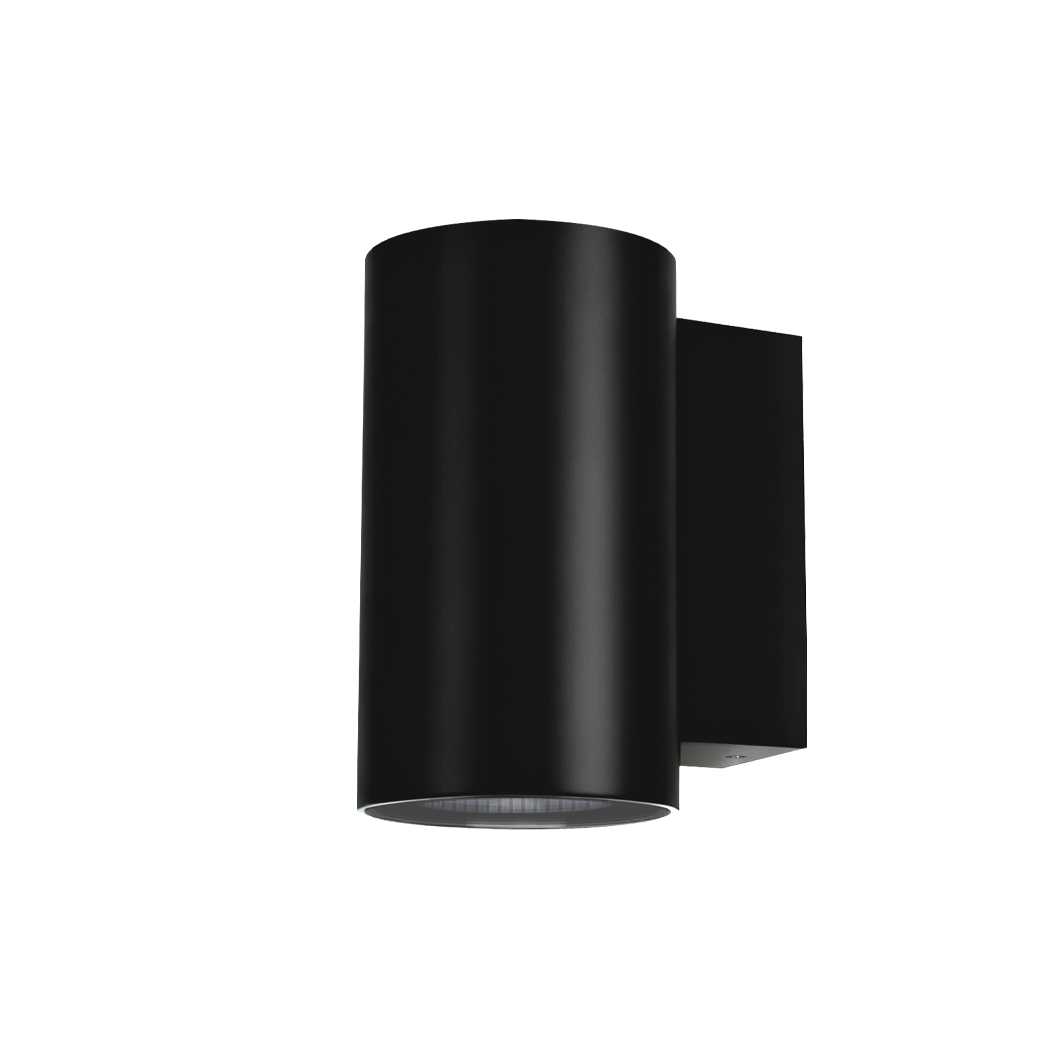

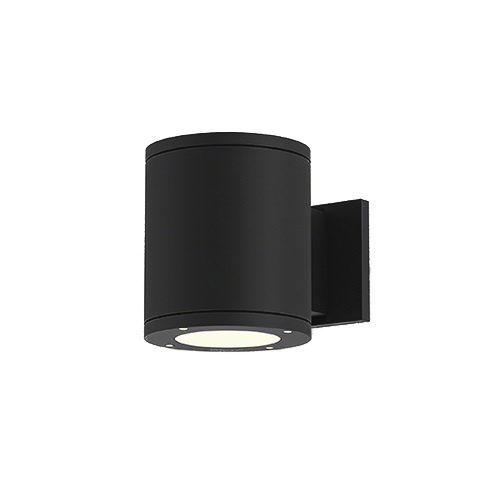

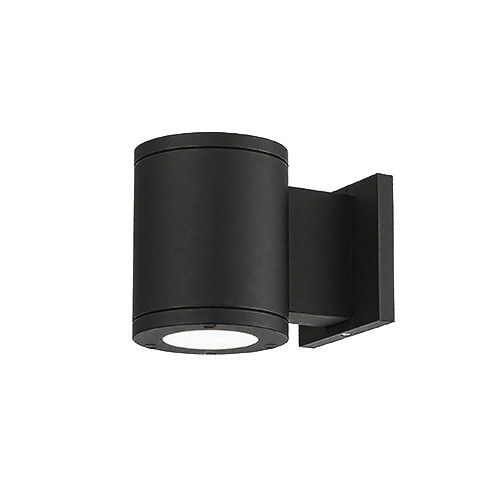

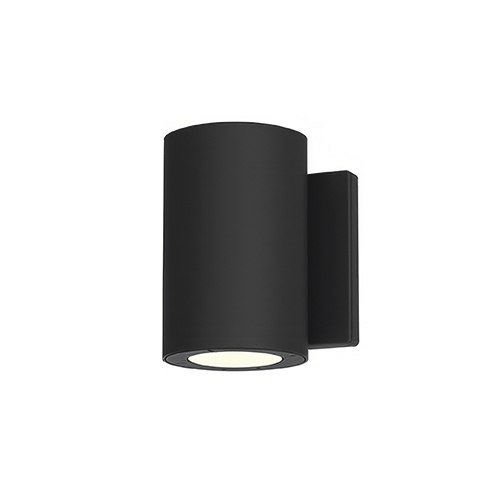

SLANA系列在建筑照明中更具有裝飾性，采用壁式安裝，單向光型分布，精巧細致的外觀和結(jié)構(gòu)設(shè)計，卓越的光學性能和靈活的人性化配件都能給用戶帶來完美的光環(huán)境體驗，適用于公共高空間的功能性照明。
Model | Comment | Power （W） | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1T | S Single Directional | 18 18（Max） | COB | 1635 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 17° 2 25° 3 36° | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1N | S Single Directional | 16 13(Max) | COB | 1172 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 14° 2 25° 3 35° A Away from the wall T Towards the wall | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1S | S Single Directional | 27 25(Max) | COB | 2251 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 16° 2 21° 3 33° A Away from the wall T Towards the wall | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1M | S Single Directional | 36 32(Max) | COB | 2783 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 16 2 30° 4 40° A Away from the wall T Towards the wall | 30 3000K 40 4000K | WT White BK Black |
示例: EW1MS-36EL-130WT
