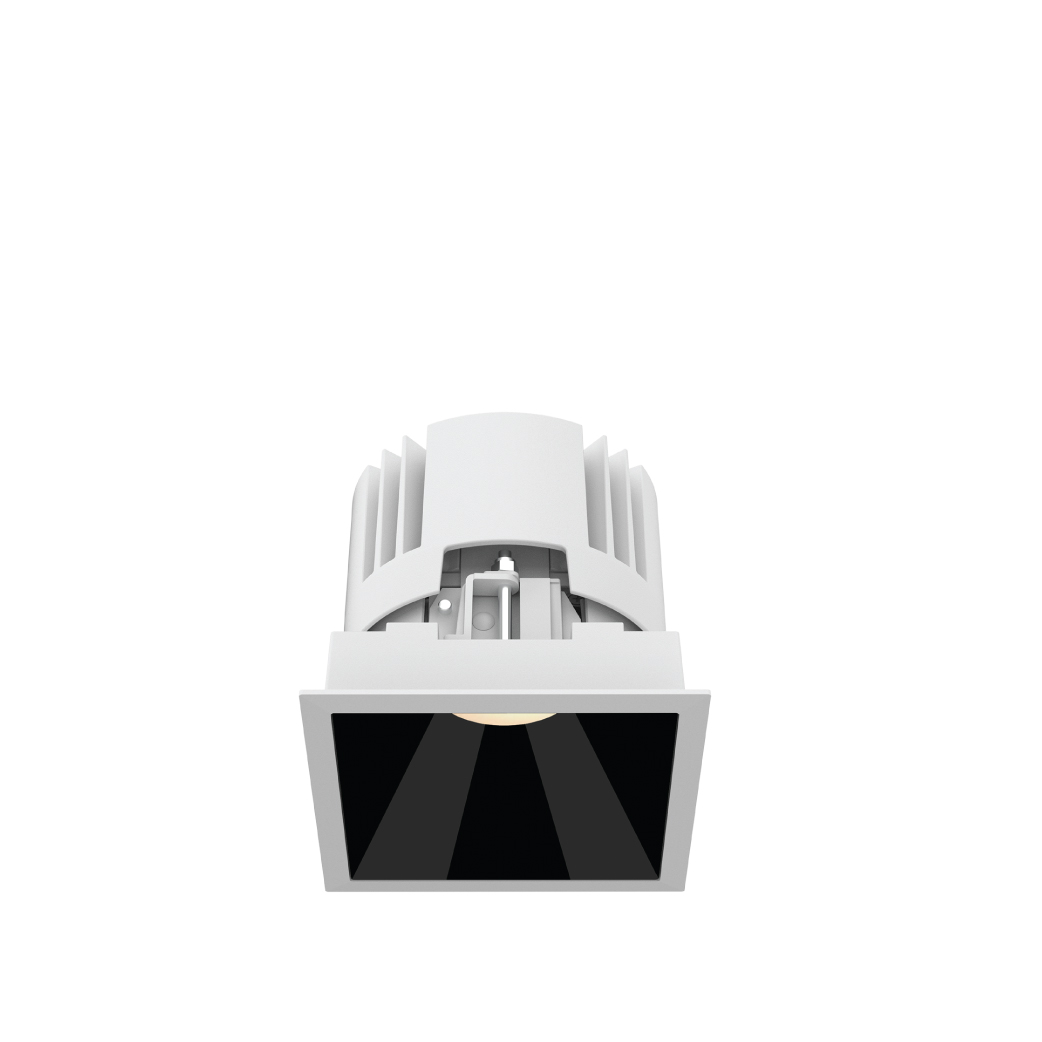

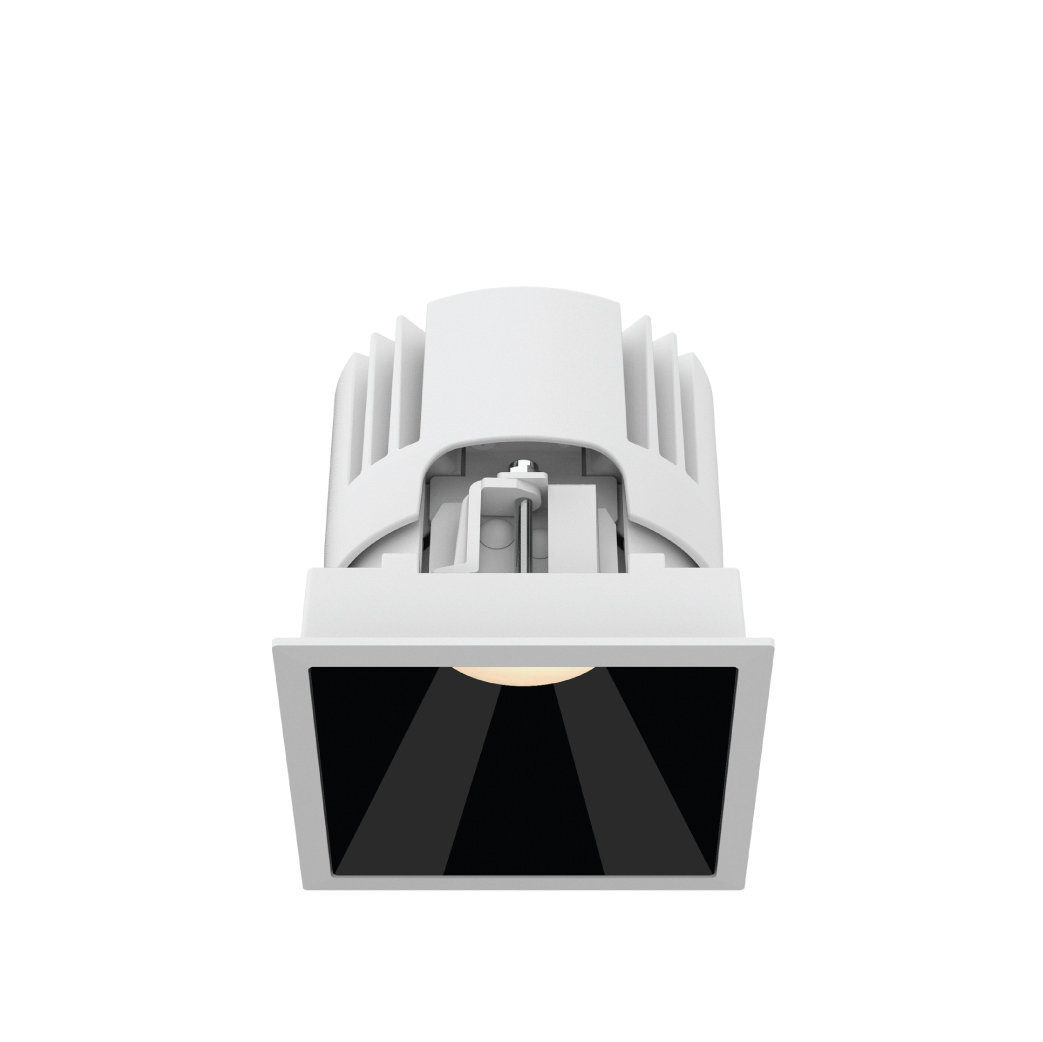

VOLTA II 系列LED 方形窄邊嵌入式下照筒燈，流線型外觀，采用精準的透鏡和黑鏡反射器設計，保證超高光效的同時仍能達到極致的防眩效果，也可自由拆卸并更換反射器或光學配件，極大的提高了現(xiàn)場的便利性，主要適用于酒店及商業(yè)室內場所。
實際點亮展示，光斑干凈、柔和，無雜項光線

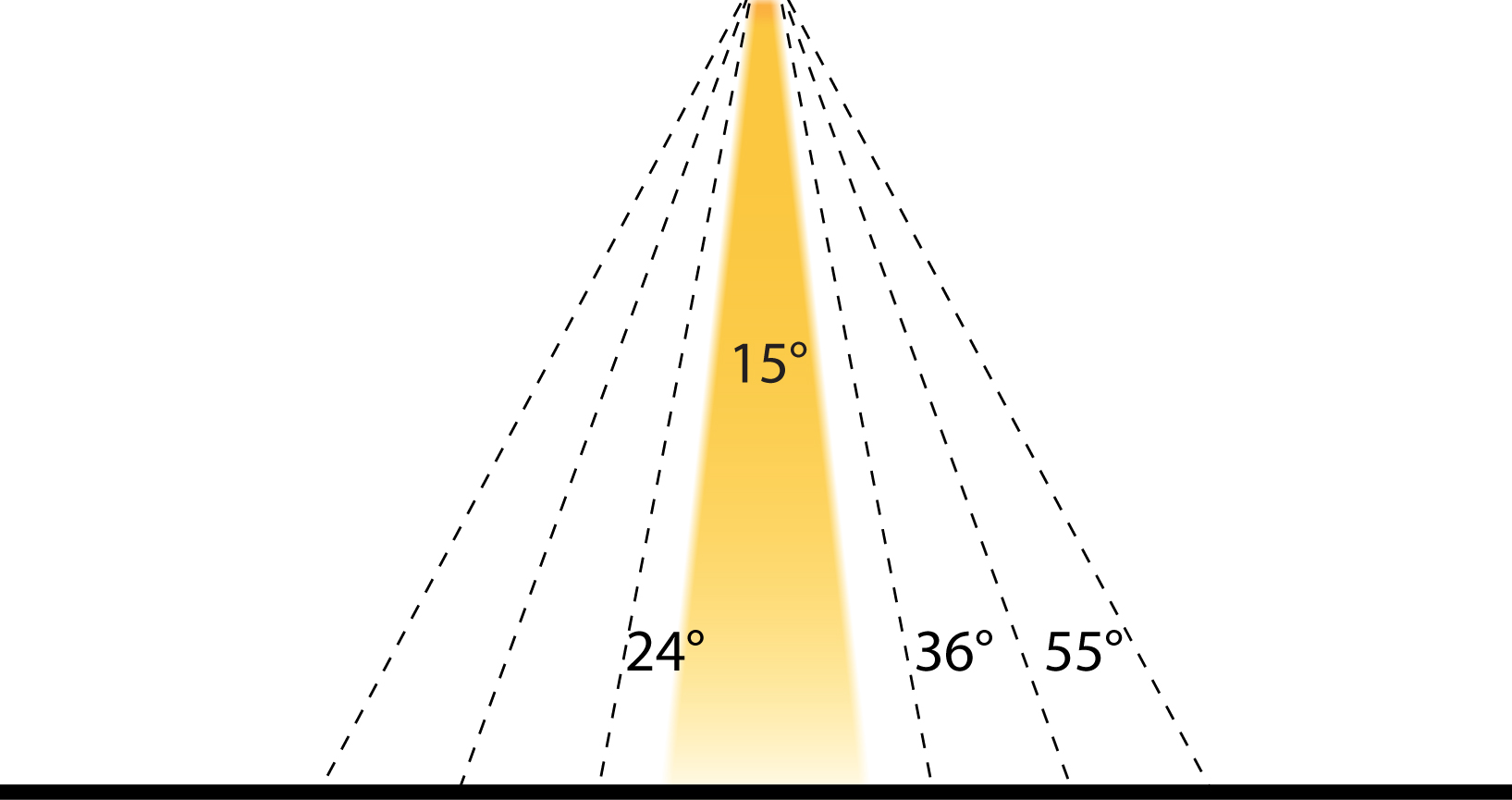

系列提供15°/24°/36°/55°四種光學配置，滿足多樣照明需求

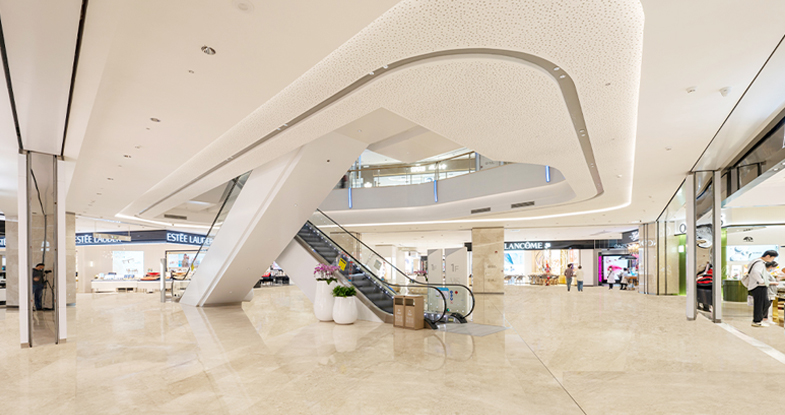

武商夢時代
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT | 3 3” | 5 Square Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT | 3 3” | 5 Square Trim | LM13 COB 13W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT | 4 4” | 5 Square Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT | 4 4” | 5 Square Trim | LM18 COB 18W | N No Driver A DALI | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
示例：DLT45-LM18-E230SWT
