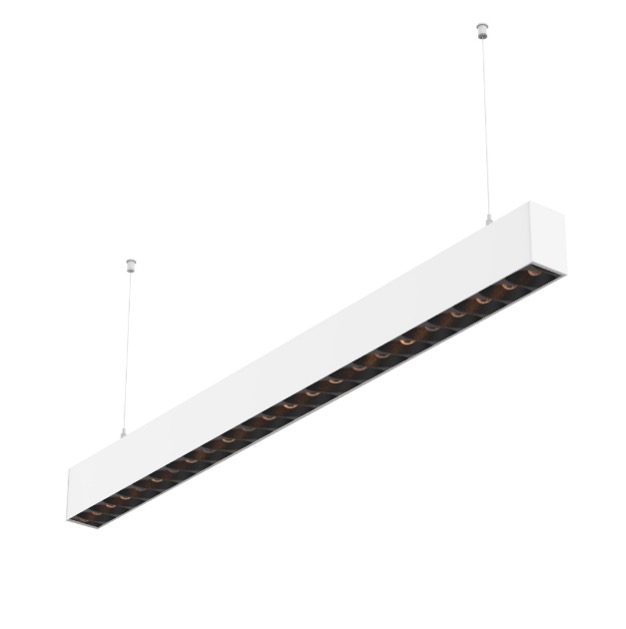

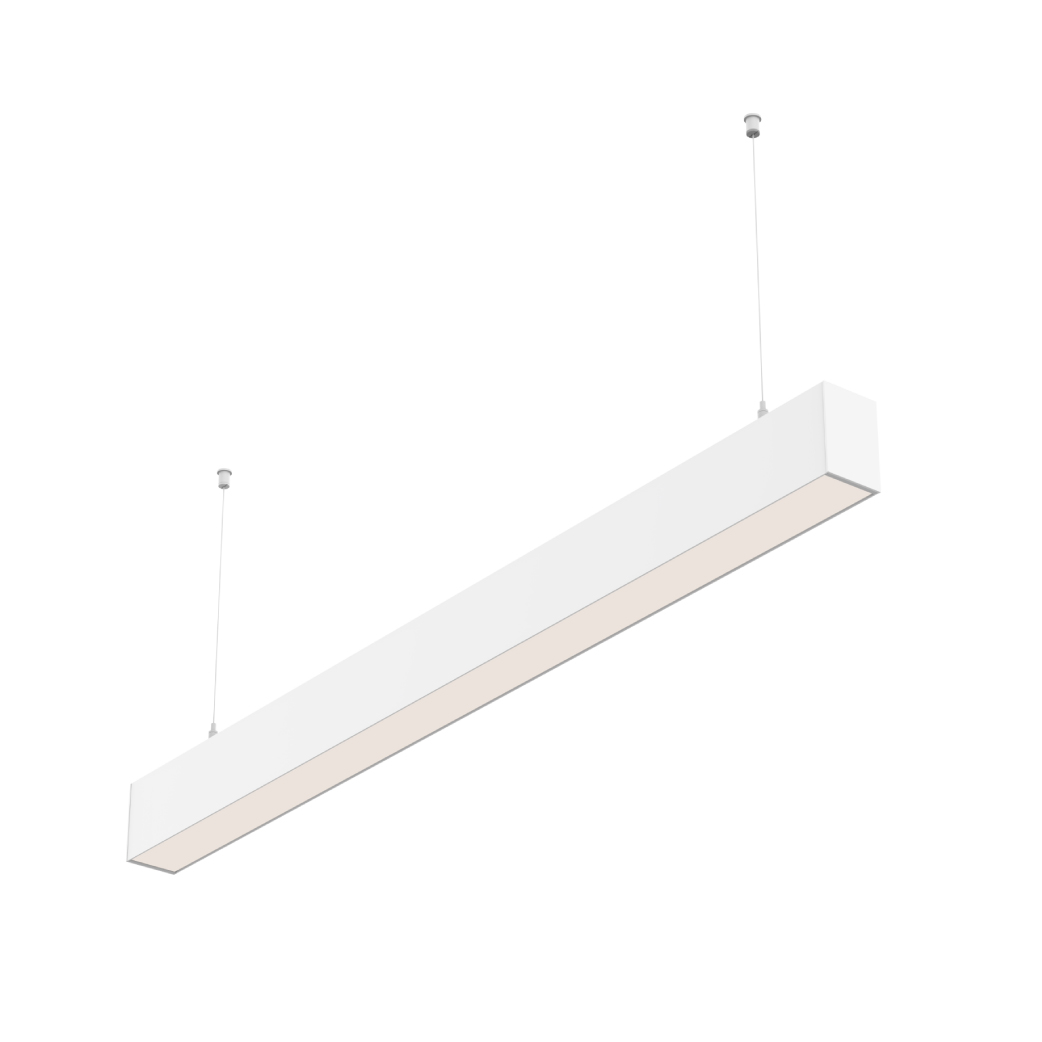

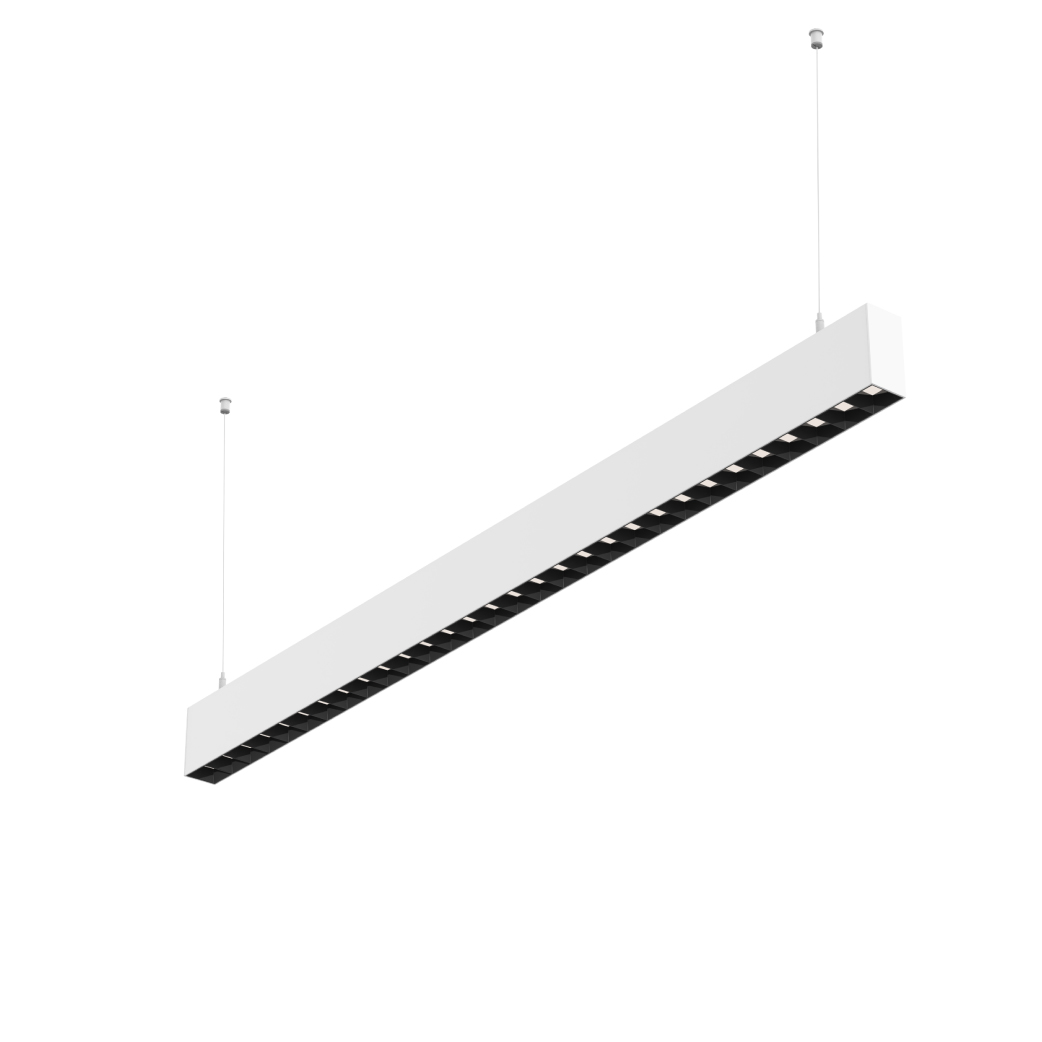

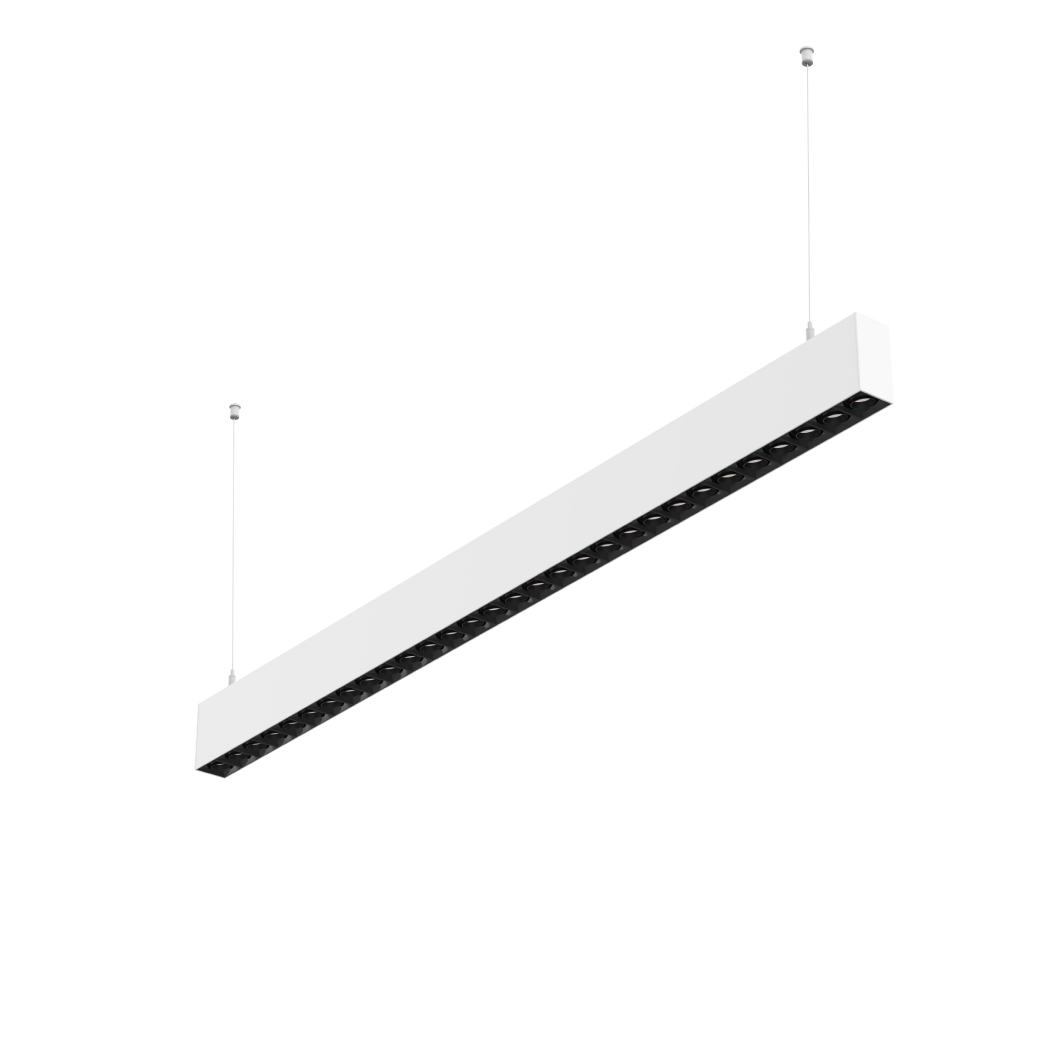

LIGNE III 吊裝線性燈，使用鋁型材燈體，外觀簡潔美觀，使用 LED 光源，擁有良好的散熱性，高效節能，防眩好，可首尾拼接，可定制長度。適用于 商業、辦公場所的照明應用。

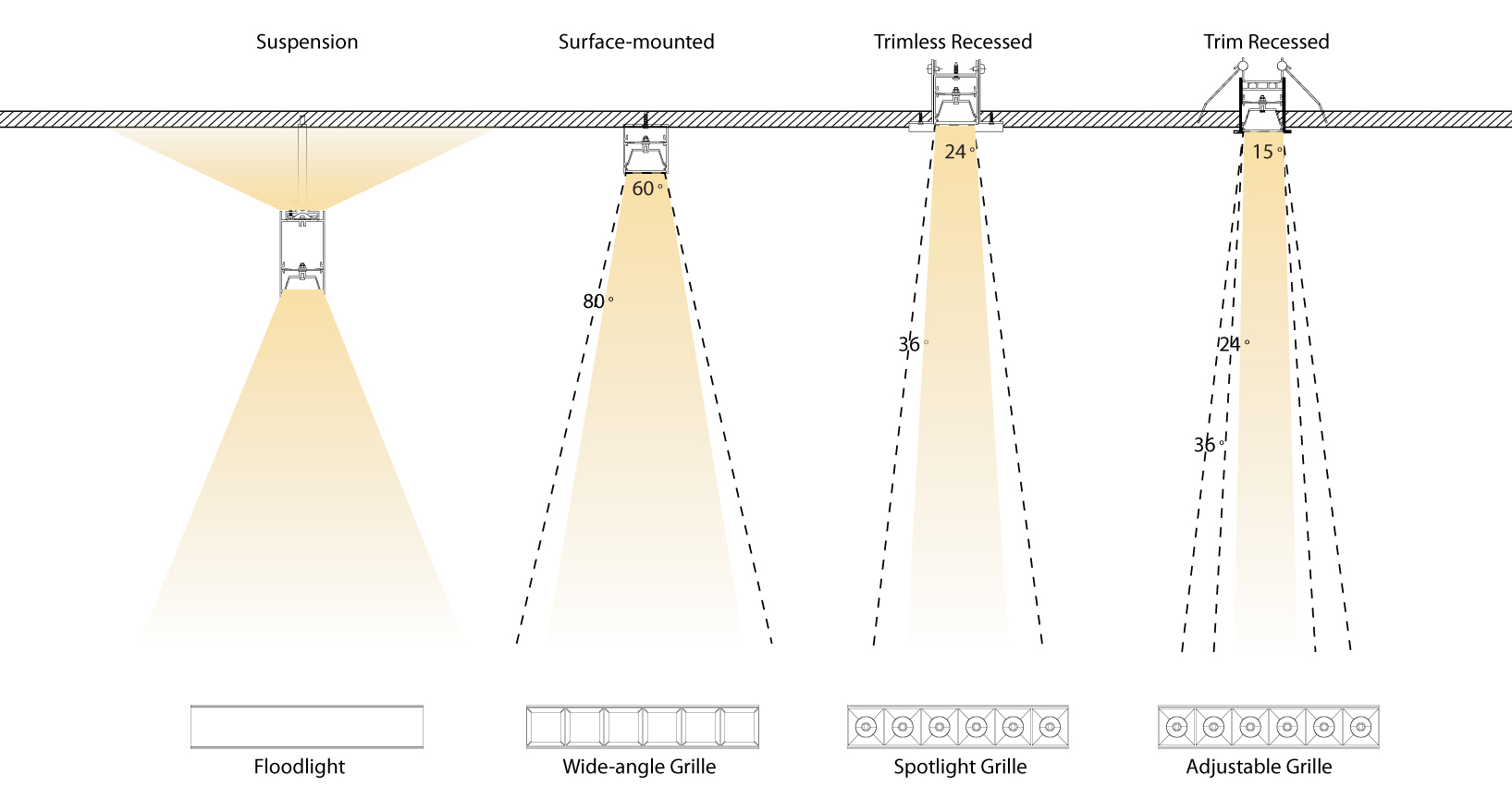

系列配置四種安裝方式，包括懸吊、明裝、有邊嵌入以及無邊嵌入， 同時具備四種光學配置可選。
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
OP2S | S Single Directional | 12 1200 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | P (霧面罩) Y (棱晶罩) | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
OP2S | D Double Directional | 12 1200 | 40 下:30W, 上:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | P (霧面罩) Y (棱晶罩) | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
OP2S | S Single Directional | 12 1145 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
OP2S | D Double Directional | 12 1145 | 40 下:30W, 上:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
OP2S | S Single Directional | 12 1205 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | 6 60° 8 80° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
OP2S | D Double Directional | 12 1205 | 40 下:30W, 上:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | 6 60° 8 80° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Comment | Beam Down | CCT | Finish |
OP2S | S Single Directional | 12 1205 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | A Adjustable | 1 15° 2 24° 3 36° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Comment | Beam Down | CCT | Finish |
OP2S | D Double Directional | 12 1205 | 40 下:30W, 上:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | A Adjustable | 1 15° 2 24° 3 36° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
示例：OP2SS-1230E-A240WT(備注:下照) OP2SD-1240E-FA240WT (備注:上下照)
